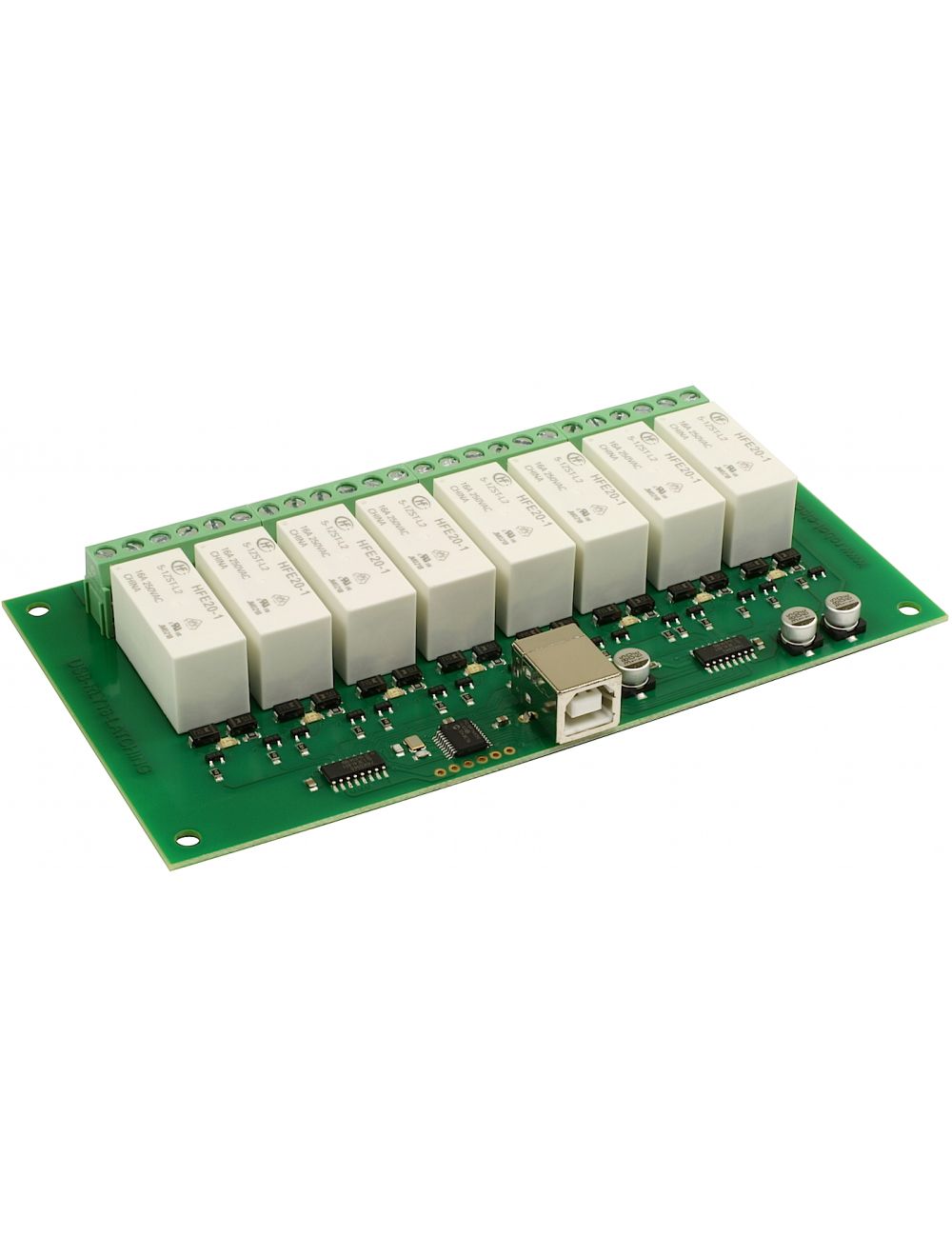

USB-RLY16L - 8 x 16A latching relay
Powered and Controlled from the USB bus.
Similar to the USB-RLY16 module above, the USB-RLY16L uses latching relays and is completely powered from a standard USB bus, no separate power supply is needed. Latching relays stay in their last position when power is removed.
Relays - 8
Power - Powered from standard USB bus
Control interface - USB
Relay current - Up to 16Amp @24vdc or 250vac
Connections - Screw Terminals for Position 0, Position 1 and Common contacts.
- Buy 5 for £56.71 £47.26 each and save 9%
- Buy 25 for £51.56 £42.97 each and save 17%
- Buy 100 for £46.87 £39.06 each and save 25%
Linux with Mono and Xbuild (C#) - Simple example of switching the relays
