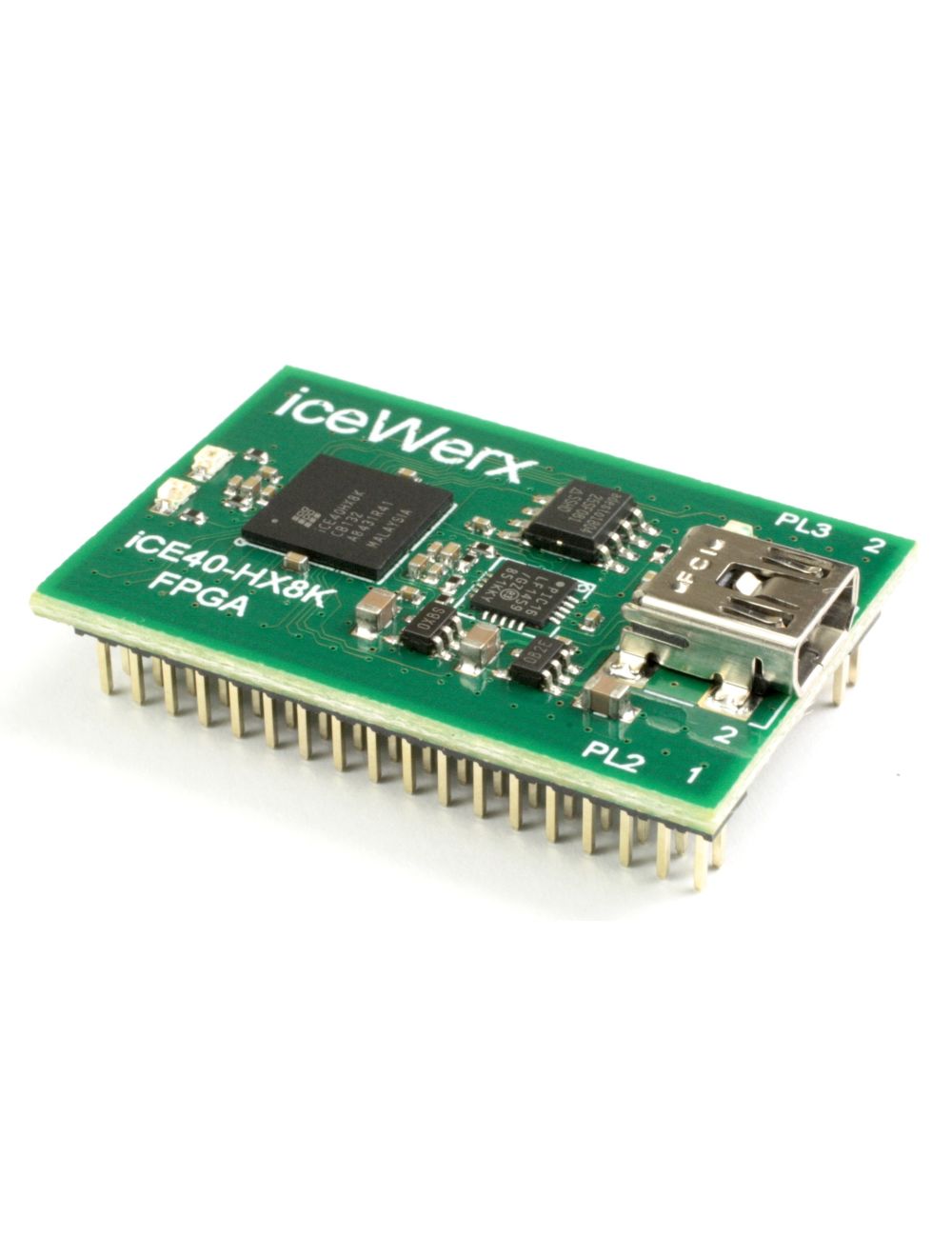

iceWerx iCE40-HX8K FPGA
4 10-bit Analogue input channels via onboard PIC.
63 FPGA I/O pins available (3.3 volt).
iCE40 HX FPGA:
7680 Logic cells
128k bits embedded RAM (32 * 4k bit blocks)
2 PLL's
An on-board PIC16LF1459 takes care of USB programming, FPGA reset and start-up and also provides 4 * 10-bit analogue channels. These are available via a serial port to the FPGA. The PIC also generates a 12MHz clock to the FPGA which may be multiplied in a PLL as required. Power is from USB or a nominal 5 volts (3.5v to absolute max. 6v)
By taking care of all the multiple power supply, sequencing and bitstream support, iceWerx provides an easy to use FPGA module ready to integrate into your own project.
FPGA documentation is available from Lattice
Development software is available from Lattice (iCEcube2) or open source
Programming software
Windows
Linux
Example projects
github
