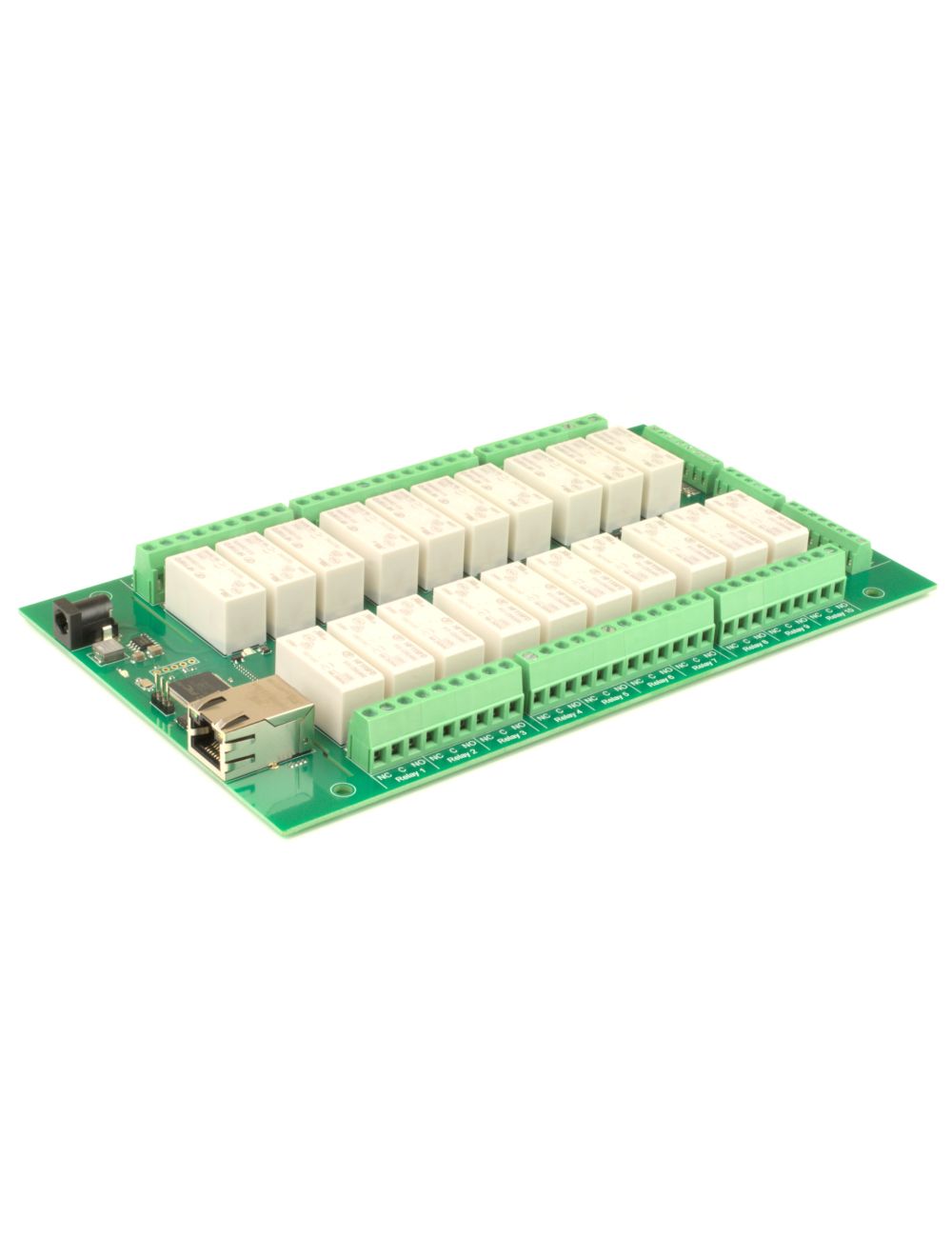

ETH1620 - 20 x 16A ethernet relay

ETH1620 - 20 x 16A ethernet relay

ETH1620 - 20 x 16A ethernet relay

Controlled over Ethernet using simple TCP/IP commands.

Relays - 20
Analogue Inputs (0-5v) - 16
Power - 12V DC adaptor, supplied separately.
Configuration & Test interface - HTTP (webpage).
Control interface - TCP/IP over Ethernet.
Relay current - Up to 16Amp @24vdc or 250vac
Connections - Screw Terminals for N/O N/C and Common contacts.
Ethernet connection - 100mb full duplex

Free Android and iPhone Apps are available to remotely control this module.
Please note additional options such as power supply, case and cables are available separately.

£144.95 £120.79
  • Buy 5 for £131.77 £109.81 each and save 9%
  • Buy 25 for £119.80 £99.83 each and save 17%
  • Buy 100 for £108.90 £90.75 each and save 25%

Full ETH1620 Documentation

Java network scanner app, easily find your module even on another subnet - Devantech module finder

Examples:
Java - command line application for controlling the module
Perl - Simple example of setting an output active/inactive by tcp
PHP script - Simple example of setting an output active/inactive by tcp
Python  - command line application for controlling the module
Visual Basic - source code for simple program, includes UDP scan to determine any boards connected to the local network
Visual C# - source code for simple program, includes UDP scan to determine any boards connected to the local network
