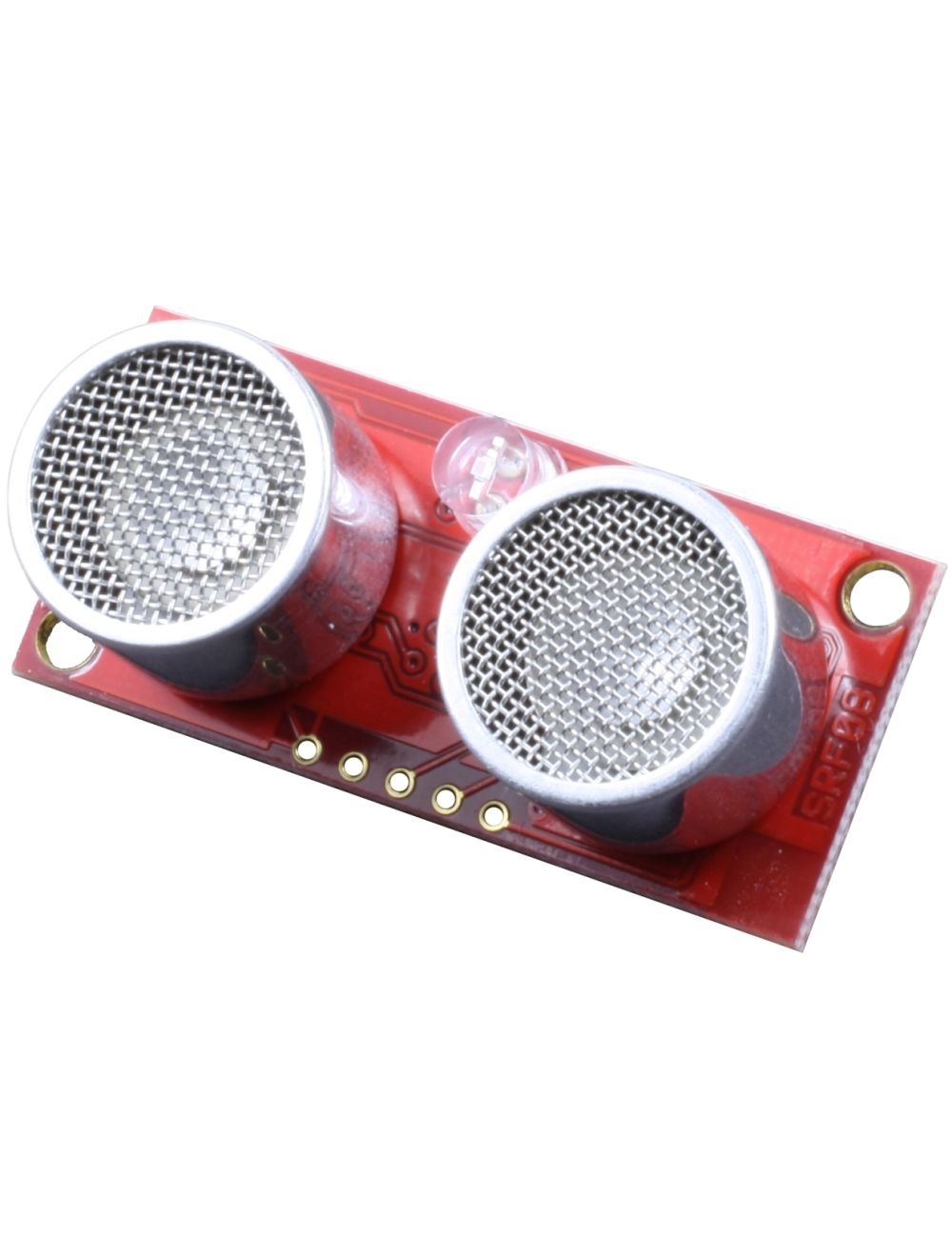

SRF08 - I2C range finder

SRF08 - I2C range finder

SRF08 - I2C range finder

Power - 5v at only 15mA, this reduces to 3mA in standby condition
Communication - Standard I2C Bus.
Distance - Using a 40khz ping the SRF08 measures from 3cm upto 6m. The result can be scaled by the SRF08 to uS, cm or inches.
Multiple echo detection - Upto 17 responses can be detected, these are placed in an array of registers sorted in order of distance.
Fully calculated result - No need to worry about timing a response pulse or scaling the result.
Light Sensor - Front Facing light sensor is read with ranging command and light intensity is read and placed in a convenient register
Size - The SRF08 measures just 43mm x 20mm x 17mm.

£30.60 £25.50
  • Buy 5 for £24.78 £20.65 each and save 19%
  • Buy 25 for £23.60 £19.67 each and save 23%
  • Buy 100 for £22.48 £18.73 each and save 27%

Full Technical Data and the FAQ

Examples:
I2C bus tutor - general I2C guide
Arduino
 - using an I2C interface and LCD03/LCD05
ATMEGA32 - reading the result and displaying on a LCD03/LCD05
BS2 stamp - I2C communication, writes to the debug console
Linux - GCC on Ubuntu 10.4LTS demonstration of usage using the USB-I2C interface
PIC16F877 - reading the result and displaying on a LCD03/LCD05
PIC18F4410 - reading the result and displaying on a LCD03/LCD05
PIC24FJ16GA002 - reading the result and displaying on a LCD03/LCD05
Picaxe18x - I2C communication example
PicBasic PRO -  uses the PIC16F877
Propeller - reading the result and displaying on a LCD03/LCD05
Raspberry Pi
- using I2C communication
