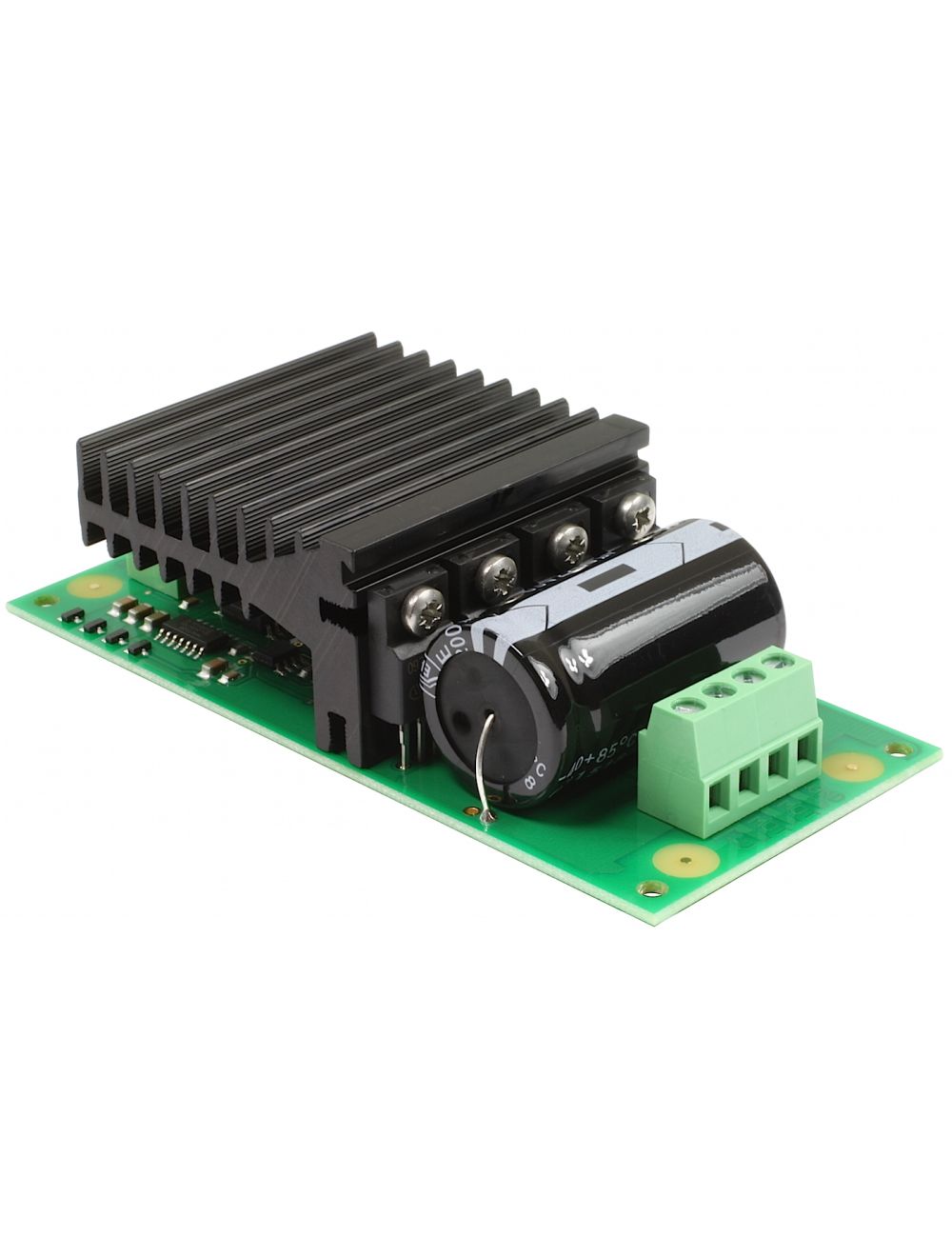

MD03 - 24V 20A H-bridge motor driver

MD03 - 24V 20A H-bridge motor driver

The MD03 is a medium power motor driver, designed to supply power beyond that of any of the low power single chip H-Bridges that exist. Main features are ease of use and flexibility. The motor's power is controlled by on-board Pulse Width Modulation (PWM) generators driving the H-Bridge Transistors. Voltage - 5v logic supply and 5v - 24v for the motor Current - 50mA Max for logic and up to 20A for the motor Control 1 - 0v - 2.5v - 5v Analogue for Reverse - Stop - Forward Control 2 - 0v - 5v (or PWM equiv.) with separate direction control Control 3 - RC Mode - Controlled by standard Radio Control system. Direct connection to RC receiver. (1mS - 2mS pulse with 1.5mS center off). Control 4 - I2C Interface, full control, acceleration and status reporting. Up to 8 modules on bus. SCL speed up to 1MHz Current limiter - Preset at 20A Temperature limiter - Reduces power gracefully if module overheats Size - 113mm x 52mm x 30mm

This product is now obsolete, we recommend the MD04 as a replacement

£0.00 £0.00

Full MD03 Documentation

I2C bus tutor
 - general I2C guide
 - control using an I2C interface and display using the LCD05
ATMEGA32 - Simple communication example
PIC18F4410 - driving the motor and displaying variables on the LCD03
PIC24FJ16GA002 - reading the result and displaying on a LCD03/LCD05
Picaxe18x - I2C communication example
Raspberry Pi - using I2C communication
