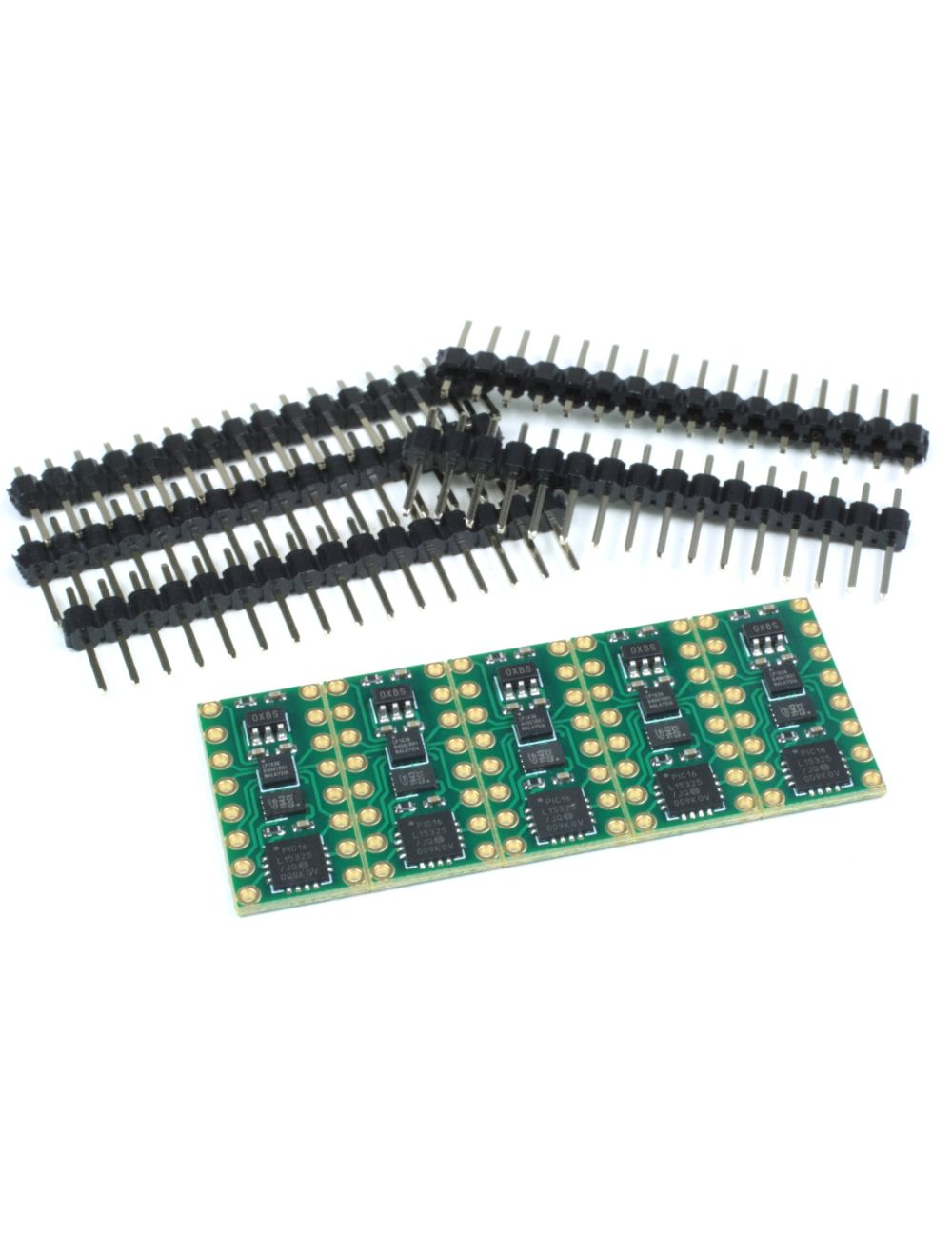

iceBLIP iCE40-LP1k FPGA
16 Pin Module
13 FPGA I/O pins available (3.3 volt).
iCE40 LP FPGA:
1280 Logic cells
64k bits embedded RAM (16 * 4k bit blocks)
An on-board PIC16F15325 takes care of programming the Flash and FPGA reset. The PIC also generates an 8MHz clock to the FPGA. Voltage is 3.3v only. With the FPGA running the blip_cnt firmware (a 13 bit counter driving all I/O pins running at 8MHz), the current draw is just 5mA.
An iceBlip programmer is available for programming in a ZIF socket or on your own PCB.
