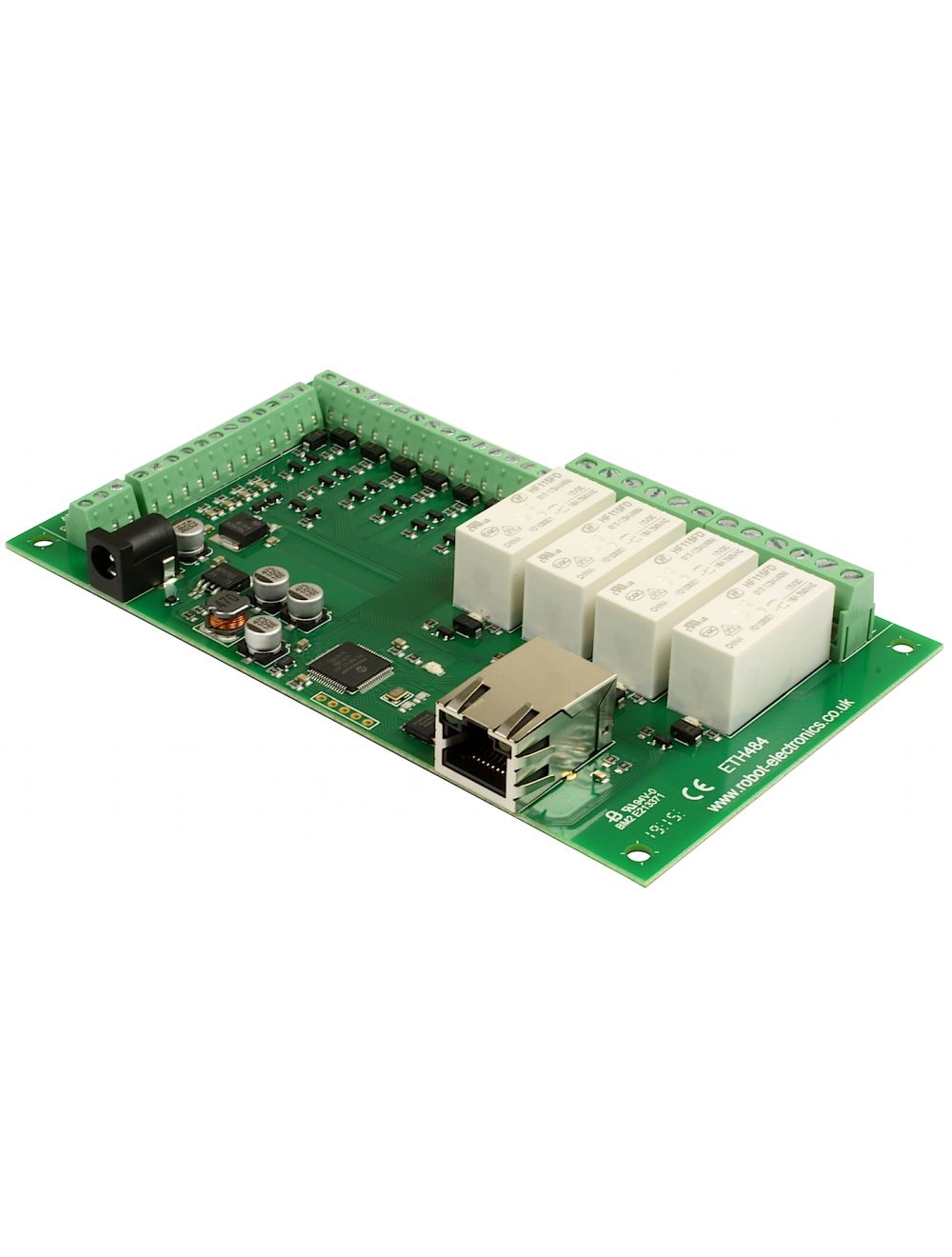

ETH484 - 4 x 16A ethernet relay
The ETH484 has now been updated to the ETH484-B
Controlled over Ethernet using simple TCP/IP commands.
Relays - 4
Digital Switching I/O channels - 8
Analogue Inputs - 4
Power - 12V DC adaptor, supplied separately.
Configuration & Test interface - HTTP (webpage).
Control interface - TCP/IP over Ethernet.
Relay current - Up to 16Amp @24vdc or 250vac
Connections - Screw Terminals for N/O N/C and Common contacts.
Free Android and iPhone Apps are available to remotely control this module.

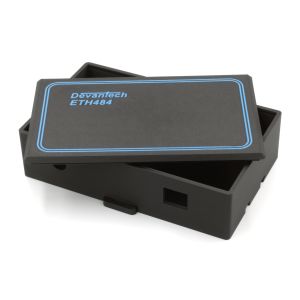

Please note additional options such as power supply, case and cables are available separately.
£0.00
£0.00
SKU
ETH484
Full ETH484 Documentation
Java network scanner app, easily find your module even on another subnet - Devantech module finder
Examples:
Java - command line application for controlling the module
Perl - Simple example of setting an output active/inactive by tcp
PHP script - Simple example of setting an output active/inactive by tcp
Python V2 - command line application for controlling the module
Python V3 - command line application for controlling the module
Visual Basic - source code for simple program, includes UDP scan to determine any boards connected to the local network
Visual C# - source code for simple program, includes UDP scan to determine any boards connected to the local network
