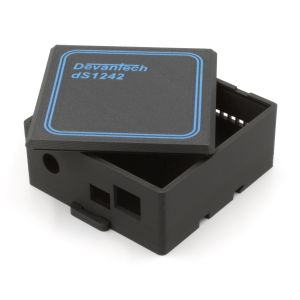

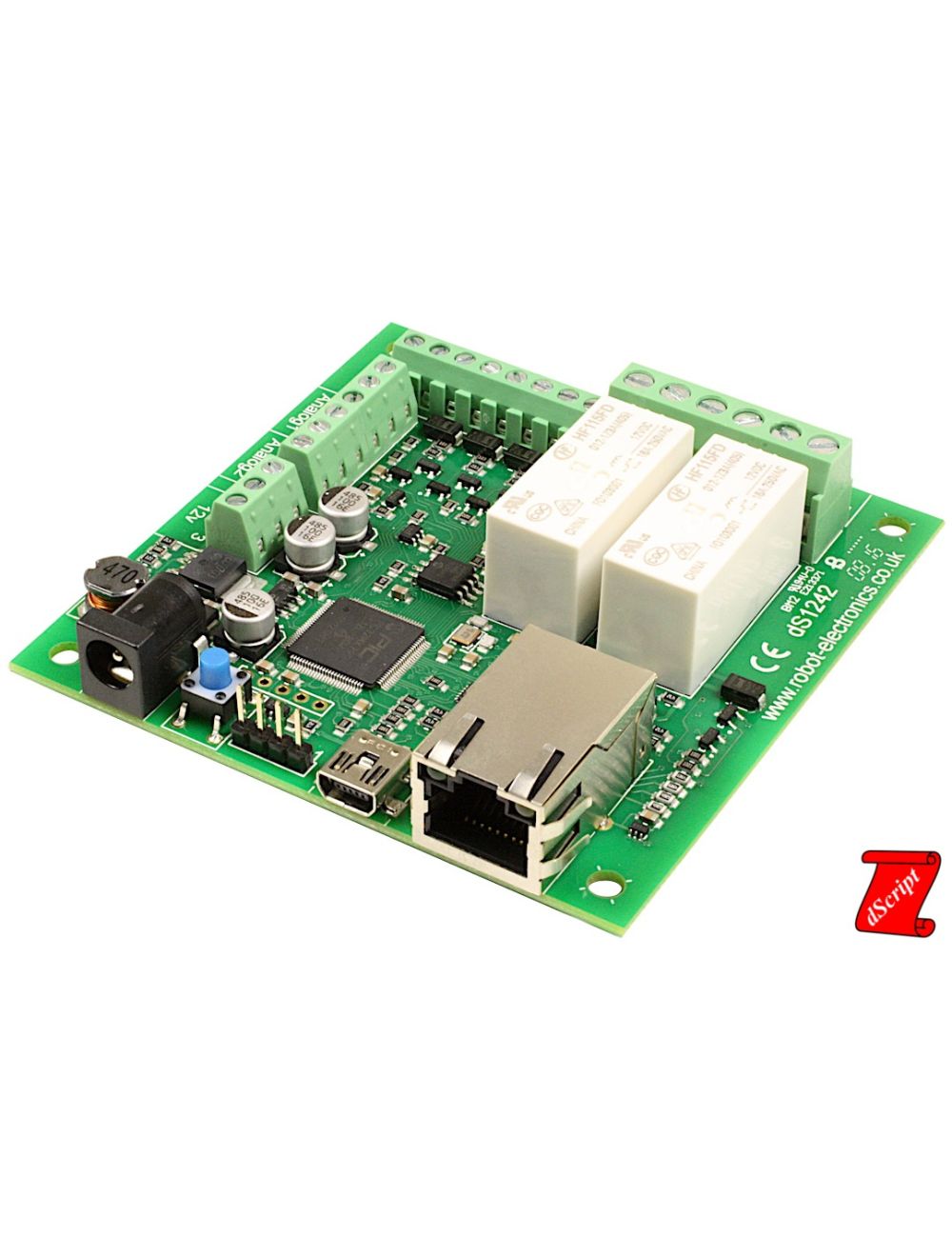

dS1242 - 2 x 16A ethernet relay

Right out of the box -
Simple configuration and setup from your web browser.
Control it from a web page, or select tcp/ip control with an option of ASCII, Binary or Modbus protocols.
Send email notifications on selected events.
Optional AES encryption for totally secure control using binary tcp/ip mode.
Add simple relay automation, for automatic relay control.
Create Peer to Peer control in a few clicks.
Up to eight 32-bit counters with capture and reset, 20 counts/second on inputs.
Event schedules for timed events daily or weekly.


Still want more?
You can completely customise the module using our powerful dScript language! - or just modify a supplied example.
Create custom webpages - Add your own logo, buttons and functionality.
Add a tcp server to respond to incoming tcp requests with your own functions.
Include a tcp client and send packets of tcp data to other devices using your own protocol.


Hardware
Serial ports - 1 x TTL level serial port.
Relays - 2 with up to 16Amp @24vdc or 250vac, screw Terminals for N/O N/C and Common contacts
I/O - 4 channels, your choice of VFC input or NPN output.
Analogue Inputs - 2 channels of 10-bit A/D.
Communication - USB for development, RJ45 Ethernet for normal access
Power - 12V DC jack 2.1mm (adaptor sold separately)


IDE
dScript editor requirements - Windows 7 or later.

Excl. VAT: £39.95 Incl. VAT: £47.94
  • Buy 5 for £36.46 (£43.75 incl. tax) each and save 9%
  • Buy 25 for £33.14 (£39.77 incl. tax) each and save 18%
  • Buy 100 for £30.13 (£36.16 incl. tax) each and save 25%

Product data and examples

Details

Documentation, editor and examples - dScript IDE
Module documentation only - dS1242 documentation

Last updated 09 MAR 2017, V2.19.
