WIFI configuration - Apple Mac version



Overview
To provide an easy connection to your network we provide an Apple MAC configuration program that will read out and offer the user to change the settings for there network. It can be downloaded here. To get started unzip the app to the desired location on your hard drive and run the app. Now select your modules serial port from the drop down menu and you will be able to edit the WIFI modules settings.

Wifi settings
Allows your networks SSID to be specified (the network name that your router broadcasts), the security type (none/WPA/WPA2) and finally assuming you are using security the passphrase.


Network settings
Contained in this page is the TCPIP port and the ip addresses and mask, if you have a network with a DHCP enabled you can set the DHCP and the IP settings will then be read only.

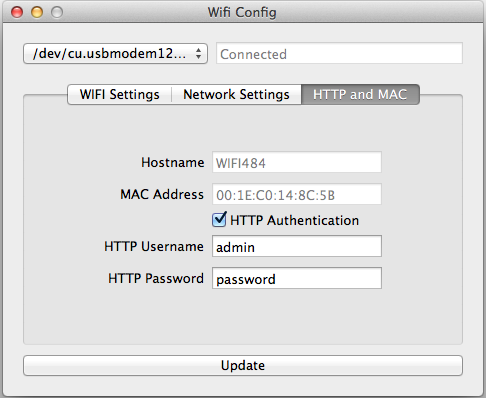

HTTP and MAC address
The MAC address and hostname are displayed for informative purpose only. The HTTP username and password can be edited from this page if HTTP authentication is enabled.
