TPA81 Thermopile Array
Technical Specification
Introduction
The TPA81 is a thermopile array detecting infra-red in the 2um-22um range.
This is the wavelength of radiant heat. The Pyro-electric sensors that are used
commonly in burglar alarms and to switch on outside lights, detect infra-red in
the same waveband. These Pyro-electric sensors can only detect a change in heat
levels though - hence they are movement detectors. Although useful in robotics,
their applications are limited as they are unable to detect and measure the
temperature of a static heat source. Another type of sensor is the thermopile
array. These are used in non-contact infra-red thermometers. They have a very
wide detection angle or field of view (FOV) of around 100° and need either
shrouding or a lens or commonly both to get a more useful FOV of around 12°.
Some have a built in lens. More recently sensors with an array of thermopiles,
built in electronics and a silicon lens have become available. This is the type
used in the TPA81. It has a array of eight thermopiles arranged in a row. The
TPA81 can measure the temperature of 8 adjacent points simultaneously. The TPA81
can also control a servo to pan the module and build up a thermal image. The
TPA81 can detect a candle flame at a range 2 metres (6ft) and is unaffected by
ambient light!
Spectral Response
The response of the TPA81 is typically 2µm to 22µm and is shown below:
Field of View (FOV)
The typical field of view of the TPA81 is 41° by 6° making each
of the eight pixels 5.12° by 6°. The array of eight pixels is orientated along
the length of the PCB - that's from top to bottom in the diagram below. Pixel
number one is nearest the tab on the sensor - or at the bottom in the diagram
below.
Sensitivity
Here's some numbers from one of our test modules:
For a candle, the numbers for each of the eight pixels at a range of 1 meter in
a cool room at 12°C are: 11 10 11 12 12 29 15 13 (All °C)
You can see the candle showing up as the 29°C reading. At
a range of 2 meters this reduces to 20°C - still around 8°C
above ambient and easily detectable. At 0.6 meter (2ft) its around 64°C. At 0.3
meter (1ft) its 100°C+.
In a warmer room at 18°C, the candle measures 27°C at 2 meters. This is because the candle only occupies a small part of the sensors field of view and the candles point heat source is added to the back ground ambient - not swamped by it. A human at 2 meters will show up as around 29°C with a background 20°C ambient.
The following is a snapshot of our test program. It displays a 32x8 bitmap produced by using a servo to pan the sensor. If you want a copy of this windows based program, its here, but you will need a USB-I2C to connect the TPA81 to your PC. Here you can see a candle flame about a meter away showing up as the bright spot.

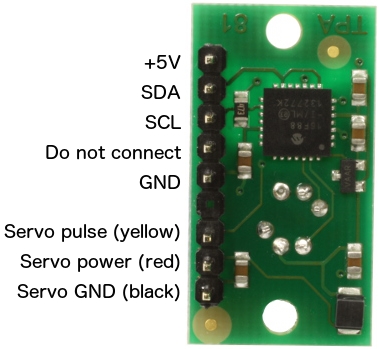

Connections
All communication with the TPA81 is via the I2C bus. If you are unfamiliar
with the I2C bus, there is a tutorial which
will help. The TPA81 uses our standard I2C 5 pin connection layout. The "Do Not Connect" pin should be left unconnected. It is
actually the CPU MCLR line and is used once only in our workshop to program the
PIC16F88 on-board after assembly, and has an internal pull-up resistor. The SCL and SDA lines should each have a
pull-up resistor to +5v somewhere on the I2C bus. You only need one pair of
resistors, not a pair for every module. They are normally located with the bus
master rather than the slaves. The TPA81 is always a slave - never a bus master.
If you need them, I recommend 1.8k resistors. Some modules such as the OOPic
already have pull-up resistors and you do not need to add any more. A servo port
will connect directly to a standard RC servo and is powered from the modules 5v
supply. We use an HS311. Commands can be sent to the TPA81 to position the
servo, the servo pulses are generated by the TPA81 module.
Registers
The TPA81 appears as a set of 10 registers.
Register |
Read |
Write |
0 |
Software Revision |
Command Register |
1 |
Ambient Temperature °C |
Servo Range (V6 or higher only) |
2 | Pixel 1 Temperature °C | N/A |
3 | Pixel 2 | N/A |
4 | Pixel 3 | N/A |
5 | Pixel 4 | N/A |
6 | Pixel 5 | N/A |
7 | Pixel 6 | N/A |
8 | Pixel 7 | N/A |
9 |
Pixel 8 |
N/A |
Only registers 0, and 1 can be written to. Register 0 is the command register and is used to set the servo position and also when changing the TPA81's I2C address. It cannot be read. Reading from register 0 returns the TPA81 software revision. Writing to register 1 sets the servo range - see below. It cannot be read back, reading register 1 reads the ambient temperature.
There are 9 temperature readings available, all in degrees centigrade (°C). Register 1 is the ambient temperature as measured within the sensor. Registers 2-9 are the 8 pixel temperatures. Temperature acquisition is continuously performed and the readings will be correct approx 40mS after the sensor points to a new position.
Servo Position
Commands 0 to 30 set the servo position. There are 31 steps (0-30) which
typically represent 180° rotation on a Hitec HS311 servo. The
calculation is SERVO_POS*60+540uS. So the range of the servo pulse is 0.54mS to
2.34mS in 60uS steps. Writing any other value to the command register will
stop the servo pulses.
Command | Action | |
Decimal | Hex | |
0 | 0x00 | Set servo position to minimum |
nn | nn | Set servo position |
31 | 0x1F | Set servo position to maximum |
160 | 0xA0 | 1st in sequence to change I2C address |
165 | 0xA5 | 3rd in sequence to change I2C address |
170 | 0xAA | 2nd in sequence to change I2C address |
Firmware Version 6 or higher.
As from Version 6 (March 2005) we have added a new write only register
(register 1) to allow you to vary the range of the servo stepping. It defaults
to the same 180 degree range on a Hitec HS311 servo as earlier
versions. You can write values from 20 to 120 to the range register. If you
attempt to write a value less than 20, it will be set to 20. If you attempt to
write a value greater than 120, it will be set to 120. The calculation for the
range in uS is ((31*ServoRange)/2). Setting a range of 20 will give a range of
(31*20)/2 or 310uS. Setting a range of 120 will give a range of (31*120)/2 or
1860uS. In all cases the available range is centered on the servo's mid position
of 1500uS. So in the first example, the 310uS range will be from 1345uS to
1655uS (Or 1.345 to 1.655mS if you prefer). The second example of 1860uS range
centered on 1500uS gives a range of 570uS to 2430uS. On power up the range
register is set to 120, which give the same range as earlier versions.
Changing the I2C Bus Address
To change the I2C address of the TPA81 you must have only one module on the bus.
Write the 3 sequence commands in the correct order followed by the address.
Example; to change the address of a TPA81 currently at 0xD0 (the default shipped
address) to 0xD2, write the following to address 0xD0; (0xA0, 0xAA, 0xA5, 0xD2
). These commands must be sent in the correct sequence to change the I2C
address, additionally, No other command may be issued in the middle of the
sequence. The sequence must be sent to the command register at location 0, which
means 4 separate write transactions on the I2C bus. Additionally, there MUST be
a delay of at least 50uS between the writing of each byte of the address change
sequence. When done, you should label the sensor with its address,
if you lose track of the module addresses, the only way to find out what it is
to search all the addresses one at a time and see which one responds. The TPA81
can be set to any of eight I2C addresses - 0xD0, 0xD2, 0xD4, 0xD6, 0xD8, 0xDA,
0xDC, 0xDE. The factory default shipped address is 0xD0.

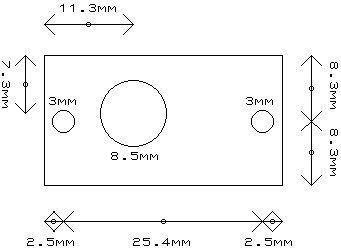

Mechanical Layout
