These examples are designed to demonstrate how to use the PIC24F family, in this case a PIC24FJ16GA002 to communicate with our modules. Most of these examples use the LCD03 display module to show the results. All the modules which use the I2C bus have 1k8 pull-up resistors to 5v. You only need one set of resistors for the whole I2C bus regardless of however many I2C devices you have connected to it. You can find more information about the I2C bus in our I2C tutorial.
|TPA81||8 Pixel Thermal Sensor|
|MD03||24V 20A Motor Driver|
|MD22||Dual 24V 5A Motor Driver|
|MD25||RD01 Motor Driver|
CMPS03 Magnetic Compass
This uses the I2C bus to connect the PIC24FJ16GA002 to the CMPS03. It reads the bearing as a 16 bit integer and also reads the bearing as a byte. These are then displayed to the LCD03.
|Download the CMPS03_pic24f.zip file|
CMPS12/11 Magnetic Compass
This uses the I2C bus to connect the PIC24FJ16GA002 to the CMPS12/11. It reads the bearing data from the CMPS12/11 and displays it on an LCD05.
|Download the CMPS12_pic24f.zip
Download the CMPS11_pic24f.zip file
The SRF01 uses a single wire for both serial input and output. We have connected this to 2 pins of the PIC24FJ16GA002 for input and output. A diode is put in place to stop the SRF01 from driving the output pin when sending data back. Range is displayed on an LCD03 module.
|Download the SRF01_pic24f.zip file|
As the SRF04 and SRF05 use the same method of communicating this example is compatible with both the SRF04 and SRF05.
|Download the SRF0405_pic24f.zip file|
This example uses the SRF05 in one pin mode, where the Trigger and Echo signals appear on the same pin. Note the SRF05's mode pin is connected to ground to place it in one pin mode.
Download the SRF05_pic24f.zip file
The SRF08, SRF02, SRF10 and SRF235 all use the same I2C interface and the basic ranging commands are the same. This example works for all these rangers. The light reading is only available on the SRF08.
Download the SRF08_pic24f.zip file
The TPA81 connects to the PIC24FJ16GA002 using the I2C bus. This example displays the ambient temperature and 8 temperatures from the thermal sensor on an LCD03 module and also drives a servo.
|Download the TPA81_pic24f.zip file|
This example shows how to drive servos by using the SD20 chip.
|Download the SD20_pic24f.zip file|

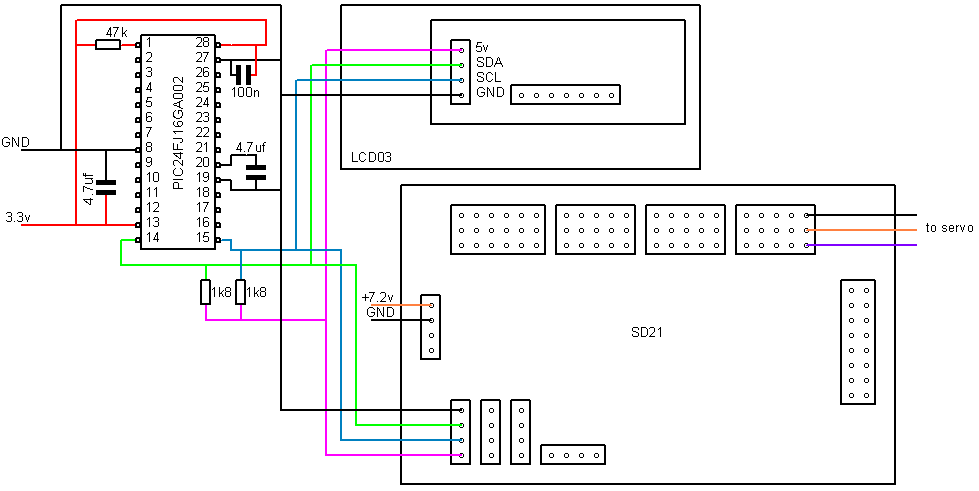

The SD21 is a ready wired module which can save a lot of time compared to the SD20 above. This example moves all servos through their maximum range.
|Download the SD21_pic24f.zip file|
MD03 24V 20A
This example runs the motor at varying speeds, displaying the temperature, motor current and speed on the LCD03.
|Download the MD03_pic24f.zip file|
5A Motor Driver
This example drives both motors and used the turn register to alter their speeds. It displays the speed and turn register values to the LCD03.
|Download the MD22_pic24f.zip file|
This example drives the RD02 motors and displays the encoder values on the LCD03 in hex format, as well as the battery voltage and current for each motor. It runs the motors back and forth between 2 values output by the encoders.
|Download the MD25_pic24f.zip file|
RLY08 Relay Module
Example of switching relays on and off by passing values to the relay states register.
|Download the RLY08_pic24f.zip file|
